ANTIGUA MT IW (In-wall) loudspeaker

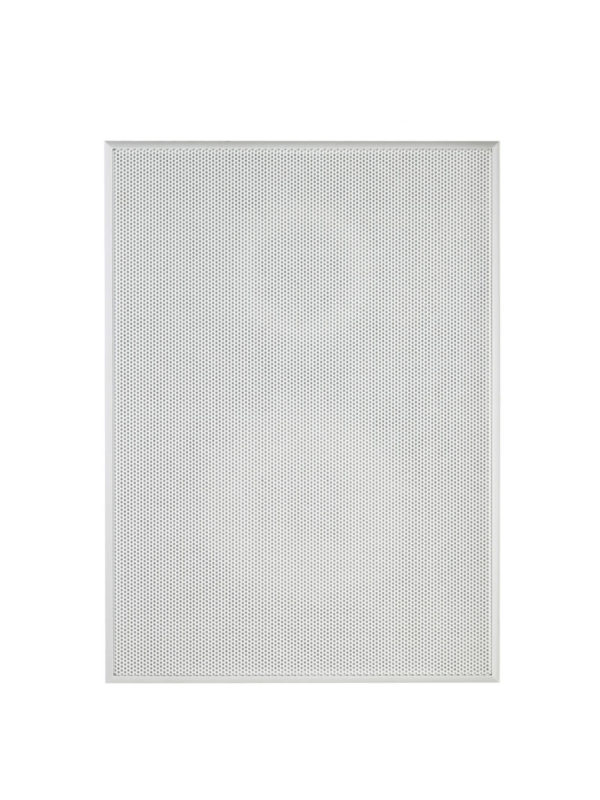

The ANTIGUA MT IW is an In-wall loudspeaker and part of the MT range. An ultra-thin magnetic grill hides the new 17T20 IW woofer and DOM36 midrange tweeter combining discrete aesthetics and elegance with all the fidelity of live sound from Cabasse.

399

ANTIGUA MT IW (In-wall) loudspeaker

The ANTIGUA MT IW is an In-wall loudspeaker and part of the MT range. An ultra-thin magnetic grill hides the new 17T20 IW woofer and DOM36 midrange tweeter combining discrete aesthetics and elegance with all the fidelity of live sound from Cabasse.

399

Easy to install

Easy to install and easily matches any amplifier thanks to high efficiency and impedance, the Antigua MT IW is the high performance solution for domestic and profesional installations, for stereo or surround sound.

FEATURES AND SPECIFICATIONS

TECHNICAL SPECIFICATIONS

Ways

2

Drivers

1 x Tweeter DOM 36 Kaladex® membrane

1 x Medium-Bass 17T20 IW P2C membrane

filter

1 800 Hz

Frequency response

53  – 22400 Hz

Sensivity 1W / 1m

88 dB

Nominal impedance

8 ohms

Minimal impedance

6,8 ohms

Nominal power

40 W

Peak power

320 W

USE

In wall /In ceiling

DIMENSIONS

Dimensions

32 x 23 x 8,8 cm

Weight

2,2 kg
